Key facts
Broad portfolio of market-leading air-traffic-control test and measurement solutions
The CERTIUM Assurance brand from Rohde & Schwarz offers a range of test, measurement and quality assurance equipment for civil air traffic control. The products ensure regulatory compliance, easy operation and simplified maintenance of entire systems. The portfolio ranges from high-quality spectrum and signal analyzers for radio, NavAid and radar testing. The system also includes solutions for automated interference hunting and IP network performance monitoring.
Aligned set of test and measurement systems for navigation, communications and surveillance solutions
Rohde & Schwarz has a broad portfolio of air traffic control solution applications, from communications to navigation and surveillance. Test and measurement solutions include high-quality spectrum and signal analyzers, radio measurement and IP quality assurance systems. The solutions are needed for installation, maintenance and troubleshooting, supporting everyday operations while maintaining fully functional, legally compliant systems.
The R&S®CMA180 is the ATC radio testing market standard for Rohde & Schwarz and other radios
The R&S®CMA180 test set is an all-in-one platform that performs in-depth analysis of air traffic control (ATC) radios, as well as NavAid systems such as ILS, VOR and MB. The integrated signal generator and spectrum and vector network analyzer in the R&S®CMA180 can help analyze signal quality, measure power, measure modulation frequency response and perform squelch sensitivity tests on the transmitter and receiver sides. The R&S®CMA180 battery and antenna mean the instrument is standalone and ideal for aircraft maintenance. These functions can also be automated with the R&S®CMArun software extension and documented in a single report. The R&S®CMA180 features analog and ED-137B/C-compatible IP interfaces. The I/Q recorder allows RF signals to be recorded via the dedicated RF ports.
The R&S®CMA180 with the R&S®Series5200 radio
VHF and UHF band antenna and cable testing with R&S®Cable Rider ZPH.
Air traffic control RF communications have specific requirements. Rohde & Schwarz has prepared a special set of measurement tools to meet them. The R&S®Cable Rider ZPH is intended for VHF-band antenna and cable testing. It provides cable loss and distance-to-fault measurements, antenna and filter matching, power measurements, as well as entry-level interference hunting features. Other handhelds, such as the R&S®FSH or R&S®ZVH complement the versatile profile.
Antenna measurement using R&S®Cable Rider ZPH

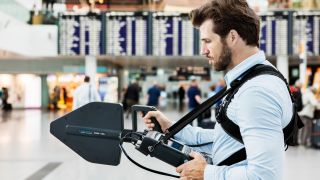

Clean the spectrum and identify, locate and eliminate interference with the R&S®Spectrum Rider FPH or the R&S®PR200
The R&S®Spectrum Rider FPH has comprehensive spectrum monitoring functions for interference hunting. When combined with a directional antenna, the R&S®Spectrum Rider FPH can pinpoint the source of the signal on a map and listen in to AM or FM modulated signals. The R&S®PR200 improves your interference hunting. It offers real-time continuous and simultaneous spectrum monitoring of the entire ATC voice band. Even very short bursts can be effectively visualized. The R&S®PR200 can also demodulate the signal on one frequency and play it out to provide acoustic information about the interference magnitude. Together with a high-precision direction finding antenna, the R&S®PR200 provides a fully automated, dynamic interference location estimation in drive tests.

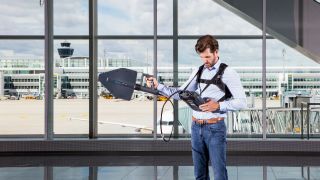

Interference hunting with the R&S®PR200
Radar measuring with the R&S®ZNH handheld vector network analyzer and many add-ons
The R&S®ZNH setup in combination with the R&S®ZNH-K45 vector voltmeter is ideal for field use in several measurement scenarios that compare two devices, including calibration of monopulse radar installations. The R&S®ZNH-K29 option complements the pulse measurement capabilities. The option is a modular add-on that lets the R&S®ZNH perform precise pulse-and-peak measurements in combination with a wideband power sensor. The setup is useful when installing and maintaining radar systems, since R&S®ZNH can measure pulses as short as 50 ns.
R&S®ZNH in use
ILS/MB, VOR, GBAS, DME measurement and calibration with the R&S®EVSF1000 and R&S®EVSG1000
R&S has a broad portfolio of test and measurement solutions that covers the entire lifecycle of NavAid systems. The R&S®EVSG1000 is ideal for ground-based field measurements, while the R&S®EVSF1000 enables in-flight inspections. The portfolio also includes signal generation equipment for receiver testing, such as the R&S®CMA180 on-board equipment radio test set or the R&S®SMBV100B and R&S®SMA100B vector signal generators. The R&S®FSH vector voltmeter helps with antenna and cable testing.

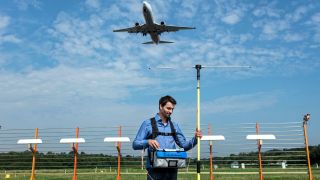

Airport measurements with the R&S®EVSG1000
