R&S®ZNBT Vector network analyzer

True multiport VNA

R&S®ZNBT Vector network analyzer
R&S®ZNBT vector network analyzer, front view
R&S®ZNBT vector network analyzer, front view
Open Lightbox
R&S®ZNBT Vector network analyzer

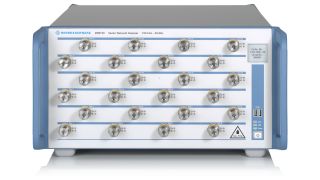

R&S®ZNBT vector network analyzer, front high
R&S®ZNBT vector network analyzer, front high
Open Lightbox
R&S®ZNBT Vector network analyzer

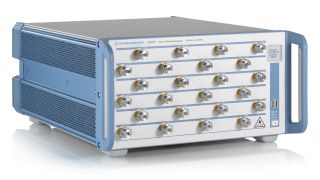

R&S®ZNBT vector network analyzer, side view
R&S®ZNBT vector network analyzer, side view
Open Lightbox
R&S®ZNBT Vector network analyzer

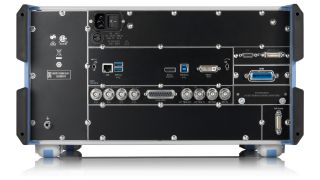

R&S®ZNBT vector network analyzer, back view
R&S®ZNBT vector network analyzer, back view
Open Lightbox
R&S®ZNBT Vector network analyzer
R&S®ZNBT vector network analyzer, back view
R&S®ZNBT vector network analyzer, back view
Open Lightbox
R&S®ZNBT Vector network analyzer

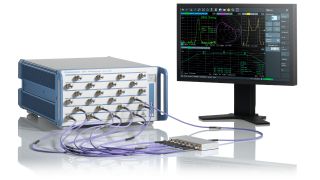

R&S®ZNBT vector network analyzer, application image
R&S®ZNBT vector network analyzer, application image
Open Lightbox
R&S®ZNBT vector network analyzer, front view R&S®ZNBT vector network analyzer, front high R&S®ZNBT vector network analyzer, side view R&S®ZNBT vector network analyzer, back view R&S®ZNBT vector network analyzer, back view R&S®ZNBT vector network analyzer, application image

Key facts

  • Frequency range: 9 kHz to 8.5 GHz or 100 kHz to 20/26.5/40 GHz
  • Up to 24 ports with fully phase coherent receivers
  • Dynamic range of up to 140 dB
  • Short sweep times of 2.5 ms (R&S®ZNBT8) for a sweep across 201 points
Get a Quote Configure your product

Network analysis with up to 24 test ports

A true multiport vector network analyzer

The R&S®ZNBT is a multiport vector network analyzer with up to 24 fully integrated test ports. The instrument can simultaneously test multiple DUTs or measure one DUT with up to 24 ports. The fully integrated test ports make the R&S®ZNBT a true multiport vector network analyzer, which includes a wide dynamic range, high output power levels and fast measurements. Frequency ranges up to 40 GHz are available.

Quick links

Features & benefits

True multiport VNA

Platform for challenging multiport measurements

The R&S®ZNBT features one reflectometer per test port. The design eliminates the loss typically encountered in switch matrix based multiport systems. As a result, the R&S®ZNBT delivers a wide dynamic range, high output power, low trace noise, and excellent raw directivity and load match.

Open Lightbox

When speed counts

Short test times and various control interfaces

The instrument’s multiport architecture enables simultaneous measurements on all DUT ports. Data from all ports is captured synchronously and processed in parallel, significantly reducing sweep time compared to switch matrix based multiport systems. Digital interfaces help boost the speed of automatic test cycles to synchronize external components in a test setup. The handler I/O interface can be used to control an external parts handler.

Open Lightbox

Versatile options and firmware features

Complex analysis of active and passive components

Enhanced performance modules with ever smaller dimensions require complex testing. The R&S®ZNBT has a wide variety options and features:

  • More than 100 traces and channels for characterizing complex components
  • Wide range of embedding/deembedding options
  • Frequency-converting measurements on amplifiers and mixers
  • Time domain analysis with gating function and display of eye diagrams

Open Lightbox

Multiport calibration

Various calibration methods and devices

The R&S®ZNBT offers calibration methods for every application, including TOSM, TSM, TRL/LRL, UOSM and more. Together with a huge variety of calibration accessories ranging from manual calibration kits to automatic calibration units with up to 24 ports, all user calibration needs can be met.

R&S®ZN-Z154 automatic calibration unit 24 ports
Open Lightbox

R&S®ZN-Z154 automatic calibration unit 24 ports

R&S®ZN-Z154 automatic calibration unit 24 ports
R&S®ZN-Z154 automatic calibration unit 24 ports
