Key facts

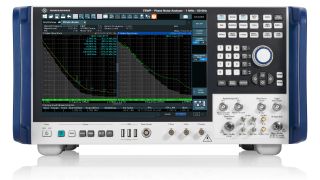

The R&S®FSWP phase noise analyzer and VCO tester is very sensitive thanks to extremely low-noise internal sources and cross-correlation. It can measure phase noise and amplitude noise in mere seconds on highly stable sources such as those in radar applications. Additional options such as pulsed signal measurements, residual phase noise (including pulsed) characterization and integrated high‑end signal and spectrum analysis make the R&S®FSWP a unique test instrument.
Quick links
Save time and multiply measurement throughput
The internal R&S®FSWP sources enable measurement of highly sensitive oscillators such as DROs and OCXOs with a minimum number of cross correlations, saving considerable time. Adding hardware accelerated signal processing to the R&S®FSWP phase noise analyzer enables real-time phase noise measurements. Short measurement time is key since it speeds up the development to manufacturing process while increasing production throughput.
Phase noise measurement
Phase measurement of a high-end OCXO using cross-correlation.
Highest sensitivity for phase and amplitude noise measurement
The R&S®FSWP internal local oscillator surpasses phase-noise performance of almost any signal generator available on the market. Thanks to the internal low‑noise analyzer sources, just a few correlations are needed to measure a high-quality oscillator. This allows for the fastest possible measurement times.
Phase noise and sensitivity
The results can be displayed in separate windows or together in one window.
High-end phase noise analyzer and signal and spectrum analyzer in a single box
Users can examine the spectrum and demodulate the signal to measure EVM or pulse characteristics in different measurement channels. Designers of automatic test systems save space and money since they do not have to purchase an additional spectrum analyzer or vector signal analyzer. The R&S®FSWP is a future-proof investment. It is based on the high-end R&S®FSW with its unique RF performance and high sensitivity.
The R&S®FSWP does it all
Vector signal analysis, pulsed signal analysis, measurement of higher harmonics, sensitive phase noise measurements, etc.
Easy analysis of pulsed signal sources
Measuring the phase noise of pulsed sources used in radar applications has never been easier. The R&S®FSWP captures the signal and calculates all pulse parameters instantaneously. It offers cross‑correlation for phase noise tests and automatically determines the trigger/gating parameters required for pulsed source measurements. Gating enables the R&S®FSWP to achieve a larger dynamic range for pulsed phase noise measurements compared to other methods.
Pulsed signal analysis
Automated measurement of pulse parameters in the time domain and phase noise in the frequency domain.
Residual PN measurements on pulsed and CW signals
For high‑end radar applications, knowing the additional phase noise added by individual components (e.g. amplifiers) to the signal path is crucial, since these influence pulse-to-pulse phase stability. The components have to be tested using pulsed signals under real-world conditions. The R&S®FSWP has an internal signal source for measuring residual phase noise or pulse-to-pulse phase stability and it also provides additional inputs for other external sources.
Pulse-to-pulse phase stability
3D plot of pulse-to-pulse phase stability of several bursts.
Measure VCO parameters automatically
The R&S®FSWP features extremely low‑noise internal DC sources to supply and control voltage-controlled oscillators (VCO). The R&S®FSWP measures not only the fundamental voltage but also the power of the higher VCO harmonics relative to the tuning voltage. It also displays phase noise at various offset frequencies relative to the tuning voltage.
VCO results
Frequency, output power, tuning slope and current consumption vs. tuning voltage.
Frequency and phase measurements in the time domain
The R&S®FSWP offers up to 8 GHz bandwidth for analyzing frequency or phase characteristics versus time. The R&S®FSWP also offers narrowband analysis down to 40 MHz to examine the transient response of PLLs in detail.
Transient analysis
Persistence display of synthesizer frequency settlings.
Simultaneous measurement of amplitude noise and phase noise
The R&S®FSWP allows concurrent measurement of amplitude and phase noise up to a frequency offset of 30 MHz. It displays both results simultaneously in a single window or in separate windows.
Amplitude and phase noise
The grey area represents the improved sensitivity by cross-correlation, the yellow trace is the PN and the green one the AM noise.
Allan variance calculation from close-in phase noise
To characterize oscillator frequency stability, the R&S®FSWP calculates the Allan variance from the phase noise and displays it for up to 1 million seconds (minimum offset: 1 μHz). Unlike the time domain methods, this makes it easy to suppress undesired side effects that appear as spurious emissions in the phase noise spectrum. Even short-term disturbances due to the phase noise from internal sources can be easily suppressed with cross-correlation.
Allan variance and phase noise
Calculation of the Allan variance from 33 ns to 10 s based on the phase noise measurement for an offset range of 0.1 Hz to 30 MHz.
Order number 1322.8003.09
Order number 1322.8003.27
Order number 1322.8003.51
Order number 1325.3890.02
High stability OCXO
Order number 1325.5028.26
Resolution bandwidth > 10 MHz
Order number 1325.5028.02
Resolution bandwidth > 10 MHz , for R&S®FSWP50
Order number 1338.7099.02
Resolution bandwidth, 40 MHz
Order number 1325.4350.02
Highpass filter for harmonic measurements
Order number 1322.9800.08
Cross-correlation, 8 GHz
Order number 1322.9800.26
Cross-correlation, 26.5 GHz
Order number 1322.9800.50
Cross-correlation, 50 GHz
Order number 1325.3719.08
Cross-correlation (low phase noise), 8 GHz
Order number 1325.3719.26
Cross-correlation (low phase noise), 26 GHz
Order number 1325.3719.50
Cross-correlation (low phase noise), 50 GHz
Order number 1322.9900.27
Signal source for additive phase noise measurements
Order number 1325.3725.08
RF preamplifier, 100 kHz to 8 GHz
Order number 1325.3725.26
RF preamplifier, 100 kHz to 26.5 GHz
Order number 1325.3725.50
RF preamplifier, 100 kHz to 50 GHz
Order number 1325.4338.02
80 MHz analysis bandwidth
Order number 1338.3235.04
320 MHz analysis bandwidth
Order number 1325.3848.02
LO/IF ports for external mixers
Order number 1322.9997.08
Spectrum analyzer, 10 Hz to 8 GHz
Order number 1322.9997.26
Spectrum analyzer, 10 Hz to 26.5 GHz
Order number 1322.9997.50
Spectrum analyzer, 10 Hz to 50 GHz
Order number 1325.5463.02
External generator control
Order number 1331.4313.02
Spare solid state drive (removable hard drive)
Order number 1325.4238.02
Analog modulation analysis for AM/FM/φM
Order number 1325.4244.02
Noise figure measurements
Order number 1338.3358.02
Spurious measurements
Order number 1325.4280.02
Vector signal analysis
Order number 1350.6860.02
Multi-modulation analysis
R&S®FSWP-K70 option required
Order number 1350.6876.02
BER PRBS measurements
Order number 1325.5034.02
Pulsed phase noise measurements
Order number 1325.4221.02
Pulse measurements
Order number 1338.3106.02
Pulse stability measurements
Order number 1325.5363.02
Time sidelobe measurements
Order number 1338.4525.02
Transient measurements
Order number 1338.4531.02
Transient chirp measurements
Order number 1338.4548.02
Transient hop measurements
Order number 1353.2420.02
Transient phase noise measurements
Order number 1350.5963.02
Noise power ratio
R&S®FSWP-B1 option required Status:
Order number 1325.5040.02
Security write protection for solid state drive
Order number 1345.1011.06
Software
Brings the experience and power of Rohde & Schwarz signal analysis to PC and cloud
Order number 1320.7516.06
Pulse measurements application
Order number 1320.7539.06
Analog modulation analysis (AM/FM/φM)
Modulation analysis for AM/FM/φM modulated single carriers
Order number 1320.7868.06
Transient measurements
Transient analysis
Order number 1320.7874.06
Transient chirp measurements
Transient analysis, requires R&S®VSE-K60
Order number 1320.7880.06
Transient hop measurements
Transient analysis, requires R&S®VSE-K60
Order number 1320.7522.06
Vector signal analysis
Order number 1320.7597.06
IEEE 802.11a/b/g measurements
WLAN signal analysis
Order number 1320.7680.06
IEEE 802.11p measurements
WLAN signal analysis
Order number 1320.7600.06
IEEE 802.11n measurements
WLAN signal analysis
Order number 1320.7616.06
IEEE 802.11ac measurements
WLAN signal analysis
Order number 1345.1411.06
IEEE 802.11ax measurements
WLAN signal analysis
Order number 1320.7922.06
OFDM signal analysis
Order number 1309.9580.06
User-defined Frequency Correction by SnP File
Order number 1310.0002.03
Licence Dongle
Order number 1310.0002.04
Floating license dongle
Order number 1320.7622.81
Software maintenance
Order number 1320.7580.06
3GPP FDD measurements
WCDMA signal analysis
Order number 1320.7545.06
EUTRA/LTE FDD uplink and downlink measurement application
LTE signal analysis
Order number 1320.7551.06
EUTRA/LTE advanced and MIMO (downlink)
LTE signal analysis
Order number 1320.7568.06
EUTRA/LTE TDD uplink and downlink measurement application
LTE signal analysis
Order number 1320.7900.06
EUTRA/LTE
Narrowband IoT analysis
Order number 1309.9574.06
5G NR uplink and downlink measurement application
Order number 1350.7020.06
O-RAN measurements
Order number 1048.0171.02
Harmonic Mixer 40 GHz to 60 GHz (U band)
Order number 3638.2240.02
Harmonic Mixer 50 GHz to 75 GHz (wideband signal analysis)
Order number 3638.2270.02
Harmonic Mixer 60 GHz to 90 GHz (wideband signal analysis)
Order number 3638.2292.02
Harmonic Mixer 75 GHz to 110 GHz (wideband signal analysis)
Order number 3622.0708.02
Harmonic Mixer 90 GHz to 140 GHz
Order number 3622.0714.02
Harmonic Mixer 110 GHz to 170 GHz
Order number 3593.3250.02
Harmonic Mixer 140 GHz to 220 GHz
Order number 3593.3267.02
Harmonic Mixer 220 GHz to 325 GHz
Order number 1338.8008.18
Smart noise source 10 MHz to 18 GHz
Order number 1338.8008.26
Smart noise source 10 MHz to 26.5 GHz
Order number 1338.8008.40
Smart noise source 100 MHz to 40 GHz
Order number 1338.8008.55
Smart noise source 100 MHz to 55 GHz
Order number 1338.8008.67
Smart noise source 100 MHz to 67 GHz
Order number 1338.8008.90
Smart noise source 60 GHz to 90 GHz
Order number 1338.8008.11
Smart noise source 75 GHz to 110 GHz
