Key facts
Analysis bandwidth of up to 1 GHz, outstanding phase noise of –120 dBc/Hz and a high dynamic range give the R&S®FSVA3000 signal and spectrum analyzer everything needed for demanding 5G NR measurement applications. High measurement speeds and easy usability make it ideal for demanding signal analysis, both in the lab and on the production line.
Quick links

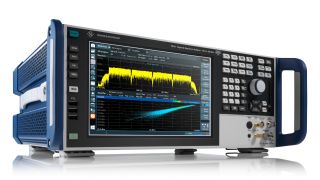

The R&S®FSVA3000 signal and spectrum analyzer is ideal for evaluating wireless communications signals in R&D, system testing, verification and production. With 400 MHz of analysis bandwidth, it can capture four neighboring 5G NR carriers at once. The dedicated options for 5G NR signal analysis enable EVM values better than 1% for a 100 MHz wide carrier at 28 GHz.
5G NR signal analysis
Analysis of a 5G NR signal with the R&S®FSV3-K144 (downlink) and R&S®FSV3-K145 (uplink) options
Up to 1 GHz analysis bandwidth, high dynamic range and low phase noise
Many measurement applications in the wireless, A&D and component industries require low phase noise, wide analysis bandwidth and high dynamic range. The R&S®FSVA3000 signal and spectrum analyzer is the perfect tool for the production and verification of wireless communications systems and their components and also for service and maintenance applications in the A&D market.
Captures ten 5G NR carriers at once
The maximum analysis bandwidth of 1 GHz makes it possible to simultaneously capture up to ten 5G NR carriers of 100 MHz bandwidth each.
The R&S®FSVA3000 excels with fast access to measurement results thanks to its simple and fast setup
The R&S®FSVA3000 features
R&S®FSVA3000 event based actions
Simple troubleshooting of rare DUT events: choose an event such as a limit line failure or a screenshot from touch-down menus.
Fast measurement speed for production
Automated production of components, modules and devices requires spectral measurements as well as signal demodulation. The R&S®FSVA3000 signal and spectrum analyzer performs even complex measurement scenarios in a minimum amount of time.
The enhanced computer power option provides a quad core CPU to accelerate digital signal demodulation. It also adds an internal PCIe 3.0 bus system for fastest transfer of measurement data. In cloud based test systems, the optional 10 Gbit/s LAN interface enables fast I/Q data transfer to the network.
ACLR measurement
FFT based ACLR measurements provide significant speed improvements over swept measurements. The R&S®FSVA3000 still has an excellent dynamic range.
Order number 1330.5000.05
Order number 1330.5000.08
Order number 1330.5000.14
Order number 1330.5000.31
Order number 1330.5000.44
Order number 1330.5000.51
Order number 1330.3794.02
OCXO frequency reference
Order number 1330.3913.02
10 Gbit/s LAN interface
(requires R&S®FSV3-B114)
Order number 1346.4337.02
Resolution bandwidth up to 40 MHz
Order number 1330.3865.02
YIG preselector bypass
Order number 1330.4010.02
LO/IF connections for external mixers
Order number 1330.4078.02
Electronic attenuator, 1 dB steps
Order number 1330.4910.04
Enhanced computing power
(Always included)
Order number 1346.4950.05
Enhanced performance for FSVA3004
Order number 1346.4950.08
Enhanced performance for FSVA3007
Order number 1346.4950.14
Enhanced performance for FSVA3013
Order number 1346.4950.31
Enhanced performance for FSVA3030
Order number 1346.4950.44
Enhanced performance for FSVA3044
Order number 1346.4950.51
Enhanced performance for R&S®FSVA3050
Order number 1346.6369.02
Frequency extension 54 GHz
Order number 1330.4049.07
RF preamplifier for 4 and 7.5 GHz models
Order number 1330.4049.13
RF preamplifier for 13.6 GHz models
Order number 1330.4049.30
RF preamplifier for 30 GHz models
Order number 1330.4049.44
RF preamplifier for 44 GHz models
Order number 1330.4049.49
RF preamplifier for 50 GHz models
Order number 1330.4049.50
RF preamplifier for 50 GHz models (export restricted)
Order number 1330.4103.02
40 MHz analysis bandwidth
Order number 1330.4132.02
200 MHz analysis bandwidth
Order number 1330.7154.02
400 MHz analysis bandwidth
Order number 1346.5762.02
600 MHz analysis bandwidth
(for FSVA3004 and FSVA3007)
Order number 1346.5762.12
600 MHz analysis bandwidth
(for FSVA3013, FSVA3030, FSVA3044, FSVA3050)
Order number 1346.5779.02
1 GHz analysis bandwidth
(for FSVA3004 and FSVA3007)
Order number 1346.5779.12
1 GHz analysis bandwidth
(for FSVA3013, FSVA3030, FSVA3044, FSVA3050)
Order number 1330.6664.02
Noise source control via BNC
Order number 1330.7502.02
1 GHz reference
Order number 1330.3859.02
External generator control
Order number 1330.3820.02
Additional interfaces
Order number 1330.3820.03
Additional interfaces
Order number 1330.4003.02
Spare hard drive
(R&S®FSV3-B20 option required)
Order number 1330.5700.02
Side carry handles
Order number 1330.3971.02
Hard drive removable
Order number 1330.3765.02
Audio demodulator
Order number 1330.4190.02
Analog baseband inputs, 2 x 200 MHz
(R&S®FSV3-B200, R&S®FSV3-B400, R&S®FSV3-B600 or R&S®FSV3-B1000 option required)
Order number 1330.4190.03
Analog baseband inputs, 2 x 200 MHz
(not available in combination with R&S®FSV3-B200, R&S®FSV3-B400, R&S®FSV3-B600 or R&S®FSV3-B1000 option)
Order number 1330.5039.02
GSM/EDGE/EDGE evolution/VAMOS measurements
Order number 1330.5080.02
3GPP FDD (WCDMA) BS measurements
(incl. HSDPA and HSDPA+)
Order number 1330.5097.02
3GPP FDD (WCDMA) MS measurements (incl. HSUPA and HSUPA+)
Order number 1330.5145.02
EUTRA/LTE FDD BS measurements
Order number 1330.5151.02
EUTRA/LTE FDD UE measurements
Order number 1330.5168.02
EUTRA/LTE BS MIMO measurements
(R&S®FSV3-K100 or R&S®FSV3-K104 option required)
Order number 1330.7231.02
EUTRA/LTE UL advanced UL measurements
(R&S®FSV3-K101 or R&S®FSV3-K105 option required)
Order number 1330.5174.02
EUTRA/LTE TDD BS measurements
Order number 1330.5180.02
EUTRA/LTE TDD uplink measurements
Order number 1346.3418.02
EUTRA/LTE NB-IoT downlink measurements
Order number 1330.7219.02
3GPP 5G-NR DL measurements
Order number 1330.7225.02
3GPP 5G-NR UL measurements
Order number 1346.4250.02
3GPP 5G-NR combined DL ACLR/SEM/EVM measurements
(R&S®FSV3-K144 option required)
Order number 1346.6498.02
5G NR multi-CC combined ACLR/SEM/EVM measurements
Requires R&S(R)FSV3-K147
Order number 1346.4914.02
5G NR R16 Extension for UL/DL
(FSV3-K144 or FSV3-K145 option required)
Order number 1346.5362.02
5G NR Rel. 17 extension for UL/DL
(R&S®FSV3-K148 and R&S®FSV3-K144 or R&S®FSV3-K145 option required)
Order number 1346.6452.02
O-RAN measurements
Requires R&S®FSV3-K10x or R&S®FSV3-K14x
Order number 1346.5679.02
Bluetooth BR/EDR/LE measurements
Order number 1330.5100.02
WLAN 802.11a/b/g measurements
Order number 1330.5139.02
WLAN 802.11n measurements
(R&S®FSV3-K91 option required)
Order number 1330.5116.02
WLAN 802.11ac measurements
(R&S®FSV3-K91 option required)
Order number 1346.3399.02
WLAN 802.11ax measurements
(R&S®FSV3-K91 option required)
Order number 1330.5122.02
WLAN 802.11p measurements
(R&S®FSV3-K91 option required)
Order number 1346.4966.02
WLAN 802.11be measurements
(R&S®FSV3-K91 option required)
Order number 1330.5022.02
Analog modulation analysis for AM/FM/φM
Order number 1346.3676.02
Power Sensor Support
Order number 1346.3347.02
Amplifier measurements
Order number 1346.3353.02
Direct DPD measurements
(R&S®FSV3-K18 option required)
Order number 1346.4408.02
Frequency response measurements
(R&S®FSV3-K18 option required)
Order number 1345.1486.02
Memory-Polynomial DPD
(R&S®FSV3-K18 and R&S®FSV3-K18D option required)
Order number 1330.5045.02
Noise figure and gain measurements
Order number 1330.5051.02
Phase noise measurements
Order number 1330.5068.02
EMI measurements
Order number 1346.3624.02
CISPR Calibration for FSV3-K54
Order number 1330.5074.02
Vector signal analysis
Order number 1346.3376.02
Multi-modulation analysis
(R&S®FSV3-K70 option required)
Order number 1346.3382.02
BER PRBS measurements
(R&S®FSV3-K70 option required)
Order number 1346.6469.02
OFDM signal analysis
Order number 1346.6552.02
200 MHz real-time spectrum measurements
Order number 1346.3630.02
User defined frequency correction by SnP file
Order number 1346.4889.02
External frontend control
Order number 1346.6769.02
I/Q noise cancellation
Order number 1346.3330.02
Pulse measurements
Order number 1346.4350.02
Transient measurements
Order number 1346.4366.02
Transient chirp measurements
(R&S®FSV3-K60 option required)
Order number 1346.4372.02
Transient hop measurements
(R&S®FSV3-K60 option required)
Order number 1346.6298.02
Transient phase noise measurements
R&S®FSV3-K60C or R&S®FSV3-K60H option required.
Order number 1330.4861.02
USB mass memory write protection
Order number 1346.3360.02
Security write protection for solid-state drive
Order number 1346.4943.02
Health and Utilization Monitoring Service
Order number 1345.1011.06
Software
Brings the experience and power of Rohde & Schwarz signal analysis to PC and cloud
Order number 1345.1105.06
Order number 1310.0002.03
Licence Dongle
Order number 1310.0002.04
Floating license dongle
Order number 1320.7622.81
Software maintenance
Order number 1320.7516.06
Pulse measurements application
Order number 1320.7868.06
Transient measurements
Transient analysis
Order number 1320.7874.06
Transient chirp measurements
Transient analysis, requires R&S®VSE-K60
Order number 1320.7880.06
Transient hop measurements
Transient analysis, requires R&S®VSE-K60
Order number 1320.7539.06
Analog modulation analysis (AM/FM/φM)
Modulation analysis for AM/FM/φM modulated single carriers
Order number 1320.7522.06
Vector signal analysis
Order number 1320.7922.06
OFDM signal analysis
Order number 1309.9580.06
User-defined Frequency Correction by SnP File
Order number 1345.1434.06
Amplifier measurements
Order number 1345.1457.06
Frequency response measurements
Order number 1345.1440.06
Direct DPD measurements
Order number 1345.1492.06
Memory polynomial DPD
Order number 1345.1211.06
Multi-modulation analysis
R&S®VSE-K70 option required
Order number 1345.1228.06
BER PRBS measurements
R&S®VSE-K70 option required
Order number 1320.7574.06
GSM measurements
GSM/EDGE/ EDGE Evolution
Order number 1320.7580.06
3GPP FDD measurements
WCDMA signal analysis
Order number 1320.7545.06
EUTRA/LTE FDD uplink and downlink measurement application
LTE signal analysis
Order number 1320.7551.06
EUTRA/LTE advanced and MIMO (downlink)
LTE signal analysis
Order number 1320.7568.06
EUTRA/LTE TDD uplink and downlink measurement application
LTE signal analysis
Order number 1320.7900.06
EUTRA/LTE
Narrowband IoT analysis
Order number 1309.9574.06
5G NR uplink and downlink measurement application
Order number 1350.7020.06
O-RAN measurements
Order number 1320.7597.06
IEEE 802.11a/b/g measurements
WLAN signal analysis
Order number 1320.7680.06
IEEE 802.11p measurements
WLAN signal analysis
Order number 1320.7600.06
IEEE 802.11n measurements
WLAN signal analysis
Order number 1320.7616.06
IEEE 802.11ac measurements
WLAN signal analysis
Order number 1345.1411.06
IEEE 802.11ax measurements
WLAN signal analysis
Order number 1338.8008.18
Smart noise source 10 MHz to 18 GHz
Order number 1338.8008.26
Smart noise source 10 MHz to 26.5 GHz
Order number 1338.8008.40
Smart noise source 100 MHz to 40 GHz
Order number 1338.8008.55
Smart noise source 100 MHz to 55 GHz
Order number 1338.8008.67
Smart noise source 100 MHz to 67 GHz
Order number 1338.8008.90
Smart noise source 60 GHz to 90 GHz
Order number 1338.8008.11
Smart noise source 75 GHz to 110 GHz
Related products
Manufacturer's recommended retail price (MSRP). The price shown does not include VAT. Prices and offers are only intended for entrepreneurs and not for private end consumers.
You may use the electronic signature via DocuSign to submit your information to enroll with the Rohde & Schwarz Customer Delegated Administration program. DocuSign processes the information provided according to their . The minimum system requirements for using the DocuSign system may change over time. The current system requirements are found
Terms & Conditions of the Prize Draw 10 years Rohde & Schwarz oscilloscopes
1. The prize draw “10 years Rohde & Schwarz oscilloscopes” (herein referred to as “Draw”) is organized by Rohde & Schwarz GmbH & Co. KG, Mühldorfstraße 15, 81671 Munich, Germany, Tel. +49 89 41 29 0 (herein referred to as “R&S).
2. All participators can register to the draw during January 01, 2020 to December 31, 2020 with their name, company name and business e-mail.
3. Participation is free of charge and not dependent on the purchase of goods or services.
4. The draw is only open to legal entities and only the legal entities are able to win the prizes. An individual person is not allowed to participate on its own name and its own account but as a representative of a legal entity filing the participation form in the name of and on behalf of the legal entity.
5. The prizes to win are 1 of 10 R&S®RTB2000 within the time frame January 1, 2020 to December 31, 2020:
Prize: 1x R&S®RTB2000 Digital Oscilloscope
6. The draw takes place at Rohde & Schwarz headquarters, Muehldorstrasse 15, 81671 Munich. The winner of the prizes will be informed by e-mail within 5 (5) working days.
7. The authorized representative of the legal entity shall inform Rohde & Schwarz about the acceptance of the price. In case of the denial of the acceptance, or no answer within two (2) weeks, a new winner will be drawn. If no winner can be determined within four (4) weeks, the draw ends and the prize forfeit.
8. R&S’ employees and members of their families and also person being familiar with the process of the draw and members of their families are excluded from filling the participation form.
9. No cash equivalent or exchange of prizes is allowed. Prizes are non-transferable. All taxes, levies, duties, fees and other charges levied in the participant´s country shall be borne by the participant.
10. Personal data will be processed only for the purpose of this prize draw and deleted four (4) weeks after the draw, if not agreed otherwise.
11. Any Participant who does not comply with these Terms & Conditions may be disqualified by R&S from this Competition. In such cases, prizes can also be withdrawn retrospectively. In case a prize is withdrawn retrospectively due to the non-compliance with these Terms & Conditions, it shall be returned by the respective participant at his cost to R&S’ address mentioned under Nr.1 and a new winner will be drawn.
12. The participants cannot claim the prizes of this draw and no legal recourse is permitted in this respect.
13. The draw and any contractual relationship arising therefrom between R&S and the respective participant shall be governed by and construed in accordance with the laws of Germany, without any recourse to the conflict of laws. The courts of Munich, Germany, shall have exclusive jurisdiction in case of any disputes arising directly or indirectly from the participation in this Competition.
* “fast delivery” inside 7 working days applies to the Rohde & Schwarz in-house procedures from order processing through to available ex-factory to ship.
