R&S®TS-PSAM

Scanning multimeter and data acquisition unit

R&S®TS-PSAM

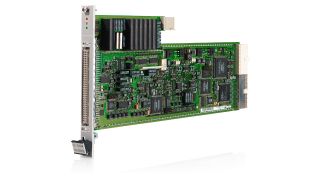

R&S®TS-PSAM Analog Source and Measurement Module, Side view
R&S®TS-PSAM Analog Source and Measurement Module, Side view
Weitere Details anzeigen

Hauptmerkmale

  • Floating measurement unit
  • DC measurement ranges from 10 mV to 120 V, 1 μA to 1 A
  • AC measurements up to 50 V (RMS), up to 1 A (RMS)
  • Resistance measurement ranges from 1 Ω to 10 MΩ, 2-wire and 4-wire
  • Measurement synchronization via PXI clock and trigger
Angebot anfordern

Brief Description

The module contains a floating measurement unit, a programmable source and a discharge circuit. The components can be switched to the analog bus of the R&S®TSVP by means of relays. The trigger logic of the measurement unit is linked to the PXI trigger lines of the backplane. Two trigger inputs and outputs are provided on the front panel connector. Two level-programmable triggers can additionally be derived from the analog input signal. The scanning of multiple channels is already provided onboard by two 4:1 relay multiplexers.
